FLYMIND INDEPENDENT R&D

FLYM-PV10W000-A3

10W (10000mW) High-Power Multi-Band Module (A3 Edition)

A3 edition 10W broadband RF power amplifier module with enhanced AGC protection, Rogers 4350B substrate, and active fan cooling.

Rogers 4350B PCB 10W Peak (10000mW) Multi-Band Broadband CNC Active Cooling Fan 5s Slow Power-On

Input Voltage: 12-28V (2-6S Lipo)

RF Peak Power: 10W Peak (10000mW)

Frequency Band: Multi-Band Broadband

Mounting Pattern: 30.5 x 30.5mm Standard

Antenna Interface: MMCX / SMA Connector

BEC Power Output: 5V OUT Regulated

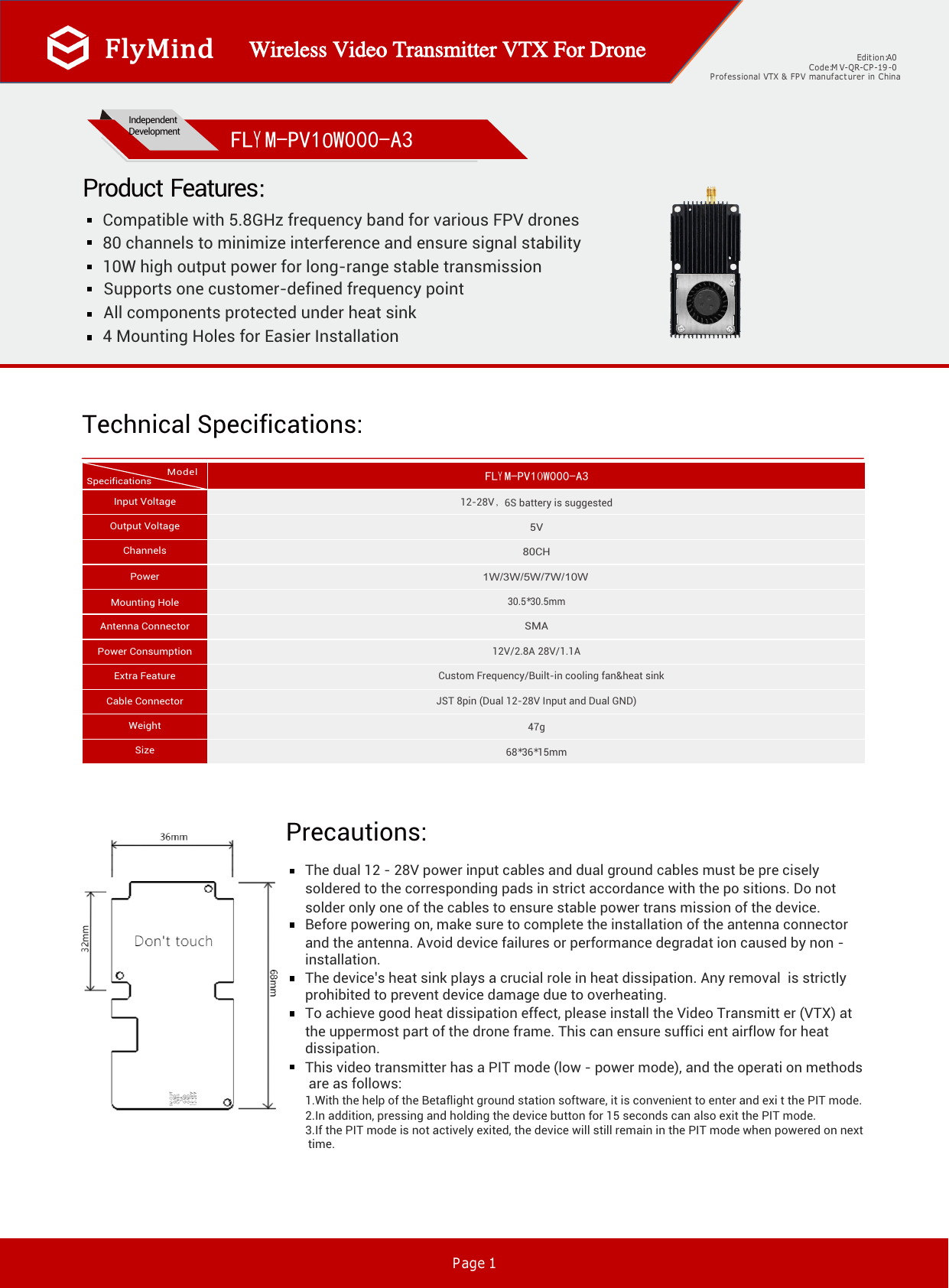

DATASHEET SPECIFICATIONS

Technical Specifications Table

Model Name	FLYM-PV10W000-A3
Input Voltage	12-28V (2-6S Lipo)
Output Voltage (BEC)	5V DC Regulated Output for FPV / HD Cameras
RF Output Power	10W Peak (10000mW) Switchable
Operating Band	Multi-Band Broadband
Mounting Pattern	30.5mm x 30.5mm Standard Flight Controller Spacing
Thermal Management	High-Strength CNC Aviation Aluminum Shell + Active Radiator Fan
Startup Surge Protection	5-Second Delayed Slow Power-On Amplifier Protection
Control Protocol	SmartAudio (SA) & Pit Mode Support
Cable Wiring Connector	JST 6-Pin Connector (12-28V Input, GND, SA, 5V-OUT, GND, CVBS Video)
